Product name: ics-20b electronic belt scale


Summary:

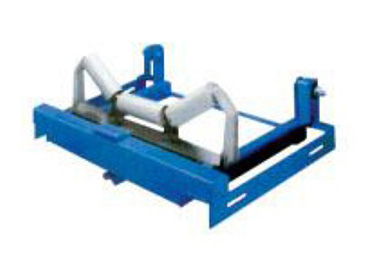

The structure of ics-20b type scale frame is half of ics-20a, that is, a set of idlers are placed on the scale frame, with a pull sensor and a pair of trunnions. The dynamic cumulative error is better than ± 0.5%. The scale is mainly installed in the inlet and outlet center distance shorter conveyor.


System composition:


ICS-20B electronic belt scale consists of four parts:

1. Weighing bridge 1 set

2. One tri-original weighing controller (instrument) (with 4-20ma output)

3. One weighing sensor (famous professional manufacturer)

4. One speed sensor and one speed measuring roller (type 60-12)


Structural features:


◆ simple structure, less transmission link, simple and convenient installation;

◆ unique rectangular lever, good rigidity, intangible change;

◆ use rubber trunnion support, anti-corrosion, moisture-proof, anti-vibration;

◆ resistance to lateral force, resistance to horizontal component, effectively reduce the impact of belt off-tracking and off-loading on the system precision;

◆ the weighing sensor is pull type, easy to adjust, flexible, reliable and high precision;


Main technical parameters:


◆ measurement accuracy: ±1.0%

◆ weighing range: 0 ~ 4000t/h

◆ belt width: 400 ~ 2200mm

◆ belt speed: 0.01 ~ 4.0m/s

◆ belt conveyor inclination: 0° ~ 16°

◆ remote transmission: 1200m


Working and installation environment:


◆ ambient temperature:


Machinery: - 20 ° C / + 50 ° C

Appearance: - 10 ° C / + 40 ° C


◆ power supply voltage: 220VAC (+10%, -15%) 50HZ±2%


External dimensions:


外形尺寸


Note: the bandwidth size not listed in the table is determined according to the actual frame


Installation diagram:

安装示意图
