Product name: ICS-30 electronic belt scale

Summary:

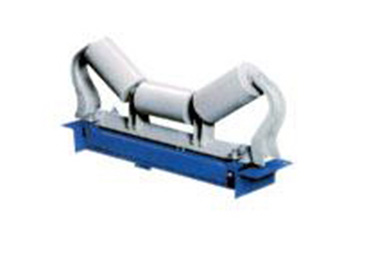

ICS-30 electronic belt scale, with a set of idlers on the rack and two pressure sensors. The dynamic cumulative error is better than ± 0.1%, which is suitable for the occasions where the accuracy is not high and the installation is simple. The scale can also be installed on the belt conveyor with the inclination Angle changing at any time, such as the stacker.

System composition:

ICS-30 electronic belt scale consists of four parts:

1. Weighing bridge 1 set

2. One tri-original weighing controller (instrument) (with 4-20ma output)

3. 2 weighing sensors (famous professional manufacturer)

4. One speed sensor and one speed measuring roller (type 60-12)

Structural features:

◆ simple structure, less transmission link, simple and convenient installation;

◆ use no lever fully suspended structure, single roller, small weighing area;

Main technical parameters:

◆ measurement accuracy: ±1.0%

◆ weighing range: 0 ~ 4000t/h

◆ belt width: 300 ~ 2200mm

◆ belt speed: 0.01 ~ 4.0m/s

◆ belt conveyor inclination: 0° ~ 18°

◆ remote transmission: 1200m

Working and installation environment:

◆ ambient temperature:

Machinery: - 20 ° C / + 50 ° C

Appearance: - 10 ° C / + 40 ° C

◆ power supply voltage: 220VAC (+10%, -15%) 50HZ±2%
