Product name: ics-20a electronic belt scale

Summary:

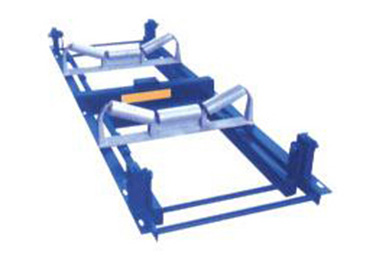

ICS-20A electronic belt scale, with two sets of idlers on the scale frame, one S- type weighing sensor and two sets of trunnions. The dynamic cumulative error is better than ± 0.5%, which is mainly used for the weighing of belt conveyor.

System composition:

ICS-20A electronic belt scale consists of four parts:

1. Weighing bridge 1 set

2. One tri-original weighing controller (instrument) (with 4-20ma output)

3. One weighing sensor (famous professional manufacturer)

4. One speed sensor and one speed measuring roller (type 60-12)

Structural features:

◆ simple structure, less transmission link, simple and convenient installation;

◆ unique rectangular lever, good rigidity, intangible change;

◆ Type 20A is supported by rubber trunnion to prevent corrosion, moisture and vibration.

◆ resistance to lateral force, resistance to horizontal component, effectively reduce the impact of belt off-tracking and off-loading on the system precision;

◆ the weighing sensor is pull type, easy to adjust, flexible, reliable and high precision;

Main technical parameters:

◆ measurement accuracy: ±0.5%

◆ weighing range: 1 ~ 4000t/h

◆ belt width: 500 ~ 2000mm

◆ belt speed: 0.01 ~ 4.0m/s

◆ belt conveyor inclination: 0° ~ 18°

◆ remote transmission: 1200m

Working and installation environment:

◆ ambient temperature:

Machinery: - 20 ° C / + 50 ° C

Appearance: - 10 ° C / + 40 ° C

◆ power supply voltage: 220VAC (+10%, -15%) 50HZ±2%

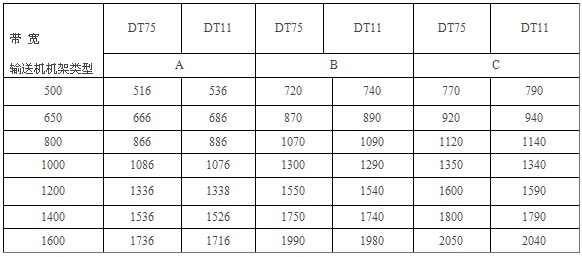

External dimensions:

Note: the bandwidth size not listed in the table is determined according to the actual frame

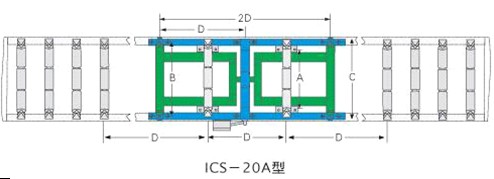

Installation diagram:
