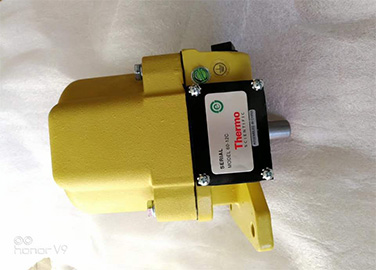

Product name: 60-12/30-10 series speed sensor

Summary:

The 60-12/30-10 series speed sensors are suitable for belt conveyors of various specifications, and can provide accurate and reliable speed detection and control of the rotating shaft and machine equipment. Good performance, reliable operation, widely used in metallurgy, power, coal, mining, chemical and building materials industries.

Working principle:

The machine is installed on the tail drum of the belt machine, the measuring drum with large diameter or the measuring roller. The measuring drum/roller is installed on the upper surface of the return journey belt, eliminating the influence caused by the belt slip. The speed sensor is a digital brushless pulse generator. When the belt is running, the speed sensor sends out a series of speed pulses, each pulse represents a unit length of the belt travel, and the pulse frequency is proportional to the belt speed.

Technical parameters:

◆ it is connected to the special speed measuring drum to eliminate the error caused by skidding between friction and belt in the usual speed measuring device;

◆ cast aluminum shell, with good shielding, good sealing performance, suitable for outdoor installation;

◆ no carbon brush pulse generator, no adjustment, calibration, no maintenance;

◆ new software connection technology, more effectively ensure the speed accuracy, and greatly improve the service life of the equipment;

Speed measurement range:

60-12c / 30-10c: 0.6 ~ 4.0m/s

Type 60-12b / 30-10b: 0.1 ~ 1.0m/s
