Product name: JSP/JZP belt scale batching system

Summary:

JSP/JZP belt scale batching system is a combination of computer technology, control technology, communication technology and graphics display technology, its main function is an ipc centralized management of a number of electronic belt scale, respectively for the flow and cumulative calculation, display and print out, at the same time can choose the network communication function. In order to form the "distributed control" and "centralized control" two design system, greatly increased the system reliability, its automation level is relatively high, easy to enterprise internal management, widely used in the power, metallurgy, coal, chemical, mining, building materials, ceramics and other industries process site.

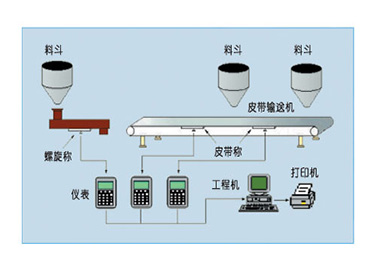

Hardware distribution diagram of JSP distribution batching system:

Characteristics of distributed batching system:

◆ advanced database management, a variety of chart printout;

◆ outstanding expert system, according to the relevant parameters to determine the ratio and control methods, to achieve the best control;

◆ according to the matching requirements, each material is automatically adjusted, with high control precision;

◆ automatic/undisturbed switching function of the system;

◆ JGC weighing and feeding machine has good metering performance, unique deviation correction design, to ensure the long-term reliable operation of the belt;

◆ overlimit fault alarm, related equipment monitoring.

Hardware distribution diagram of JZP centralized batching system:

Features of concentrated batching system:

◆ optimal PID calculation, automatic control of feed output;

◆ the best switch timing Settings, better solve the problem of material head, tail and leftover;

◆ automatic/manual trouble-free switching function of the system;

◆ automatic zero adjustment, code calibration, physical calibration functions;

◆ software and hardware interlock, interlock function, high security and reliability;

◆ automatically detect the height of the material level, dynamically simulate the quantity of the stock bin, and give the alarm of the level of the stock bin.

Function:

◆ automatically detect the running state of the feeder, and intelligently deal with the blocking problem;

◆ advanced switch data acquisition and industrial network communication technology, real-time dynamic simulation of the whole batching process and batching curve, bar chart, history curve, vivid animation, friendly interface;

◆ dynamic supplementary formula and switching timing;

◆ automatically or manually print regular, daily and monthly reports; Support network data sharing, 32-bit DBC open data, access to the Internet after authorization can query related data, support WINDOWS/WINDOWS nt /NOVELL LAN or dial-up through Modem;

◆ the software USES VISUALC++6.0, the best code optimization, the execution speed is fast, occupies the system resources less.

Technical parameters:

Accuracy: ±0.5% (optional ±0.25%)

Belt width: 500-1400mm

Current output: 0~20mA or 4~20mA is proportional to the flow rate

Communication interface: rs-232c or rs-485c
