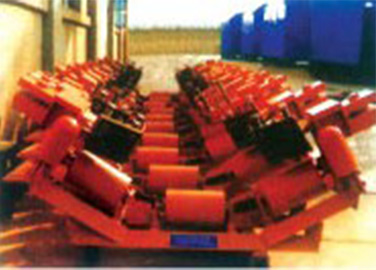

Product name: DDZ series belt breaking device

Summary:

DDZ series strip break capturing device normal operating roller is used, when a fault belt or non-return device fails, can quickly capture belt conveyor belt suddenly fell after fracture or out of control of weight, empty section of the tape, until stuck, avoid tape down the impact of, the product has the function of anti running deviation, also can be used for tape device.

Scope of use:

The belt breaker is mainly used for belt conveyors for upward transportation. Especially suitable for large inclination Angle, heavy load, long distance up the hill common type or strong type belt conveyor.

Product performance characteristics

When the belt conveyor is in normal operation, the two braking brakes of DDZ series break belt catcher are fast and the reversible stop idlers are in contact with the belt. When the belt breaks, the belt carrying the material will sag and slide, pressing on the reversible stop idler of the belt break catcher and the lower brake block on the left and right sides.

Shape technical parameters:

1. Belt width ≥500mm.

2. Upward running inclination >, 6 degrees.

3. Frame type: fixed disassembly type.

4, the roller groove Angle <60 degrees.

5. The maximum braking width on one side is 140mm

6. Rated braking force: 2300Kg

7. The damage load of the catcher is 3500Kg >

8. The maximum sliding distance is 3000mm

The track is rapidly tilted upward, gradually narrowing the distance between the upper and lower brake blocks, and finally clamping the slide belt.

Features of DDZS series with catchers:

1. Novel design, reasonable structure, sensitive action, safe and reliable.

2. Adopt multi-point arrangement along the line to overcome the disadvantages of random change of fault belt points.

3. The working mechanism adopts local section braking and can swing the brake block mechanism, which is widely applicable.

4. Contact with the adhesive tape is adopted to trigger, so the triggering action is quick, sensitive, safe and reliable.

5, use centrifugal claw no wear operation, long service life.

6. Multi-functional products. Except for band breaking. It can also be used to prevent deviation, reverse stop, tape recorder, etc.

Features of DDZX series lower band catcher:

1. Split-type structure, flexible and convenient installation.

2. The breaking band signal is taken from the upper tape, which is accurate and reliable to avoid wrong operation.

3. Adopt the arrangement along the line to overcome the disadvantages of random change of broken belt points.

4. Use the touch trigger mode with the tape to make the action sensitive and reliable.

5, easy to adjust, fast, sensitive action.

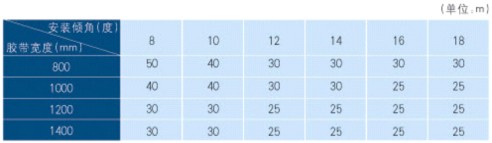

According to the width, length and installation Angle of the belt conveyor and other parameters of DDZ series belt break catcher, the number of belt break catcher should be determined and the specific selection is shown in the table below.

The average distance along the DDZS series with catchers

The average distance along the DDZX series with catchers
