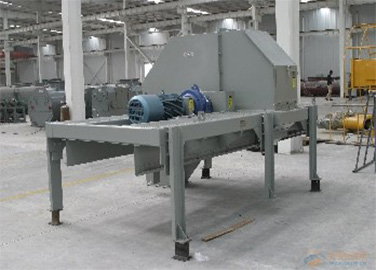

Product name: belt middle/head sampling device

Description:

The sampling system in the middle of the belt, jy-t-x type leather head (end), refers to the way in which the primary sampler is installed on the belt conveyor and directly collects sub-samples from the running horizontal or inclined conveyor belt.

Working principle:

Belt sampling head device rotate for a week every certain time interval sampling, sampling head cutting coal flow a whole section, collect one sample, the sample after the chute into the primary feeder, continuous, uniform delivery the sample to crusher, Ann asked the granularity and broken, broken after the sample into the secondary feeder for second sampling points, the samples into the sample collector, the concrete by the bucket elevator conveyor, return to the main stream of belt conveyor.

System composition:

A typical central two-stage sampling system. The system consists of rotary bucket sampler, primary sample feeder, hammer crusher, secondary sample feeder, secondary sampler and residual processing equipment.

Features and advantages of the system:

Using PLC control, high degree of automation, reliable operation.

The system design is compact, save space, suitable for low space installation.

Unit structure is convenient for field combined installation.

Careful design and selection of materials to effectively prevent blocking and spreading.

Flow chart of head sampling:

Central sampling flow chart:
