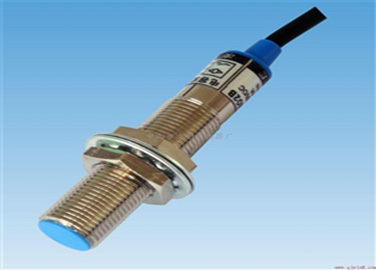

Product name: tooth speed sensor (Turk, Germany)

BI5-M/MI18-M30-AM6X

BI5 type tooth speed sensor is in the form of proximity switch (3-wire system), specially developed for belt scales and other weighing instruments, suitable for various working conditions, and can also be used for various weighing feeder, weighing coal feeder and other dynamic weighing products.

Gear speed sensor working principle:

Induction iron metal targets, accurate measurement of gear speed, output stability, adapt to the wide voltage range and output voltage amplitude and has nothing to do with speed, specific application is divided into the camshaft position sensor, crankshaft position sensor, wheel speed sensor, etc., generally used in low speed belt speed, concrete application in the small conveyor, batching system, etc., 10-30 VDC power supply voltage, compact structure, flexible operation, free maintenance.

Features:

◆ the instrument can be supplied with dc 24V power supply;

◆ because it can be tested in a non-contact way, it is not easy to damage;

◆ high speed response, stable output signal;

◆ can correspond to a wide temperature range.
