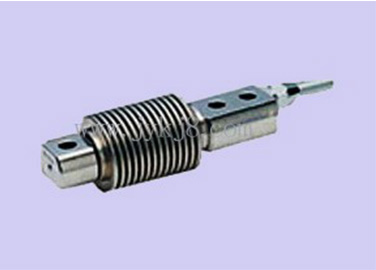

Product name: RAMSEY 9355K series weight sensor

Performance characteristics:

Materials: aluminum alloy, stainless steel

Protection class: IP67

Accuracy: 0.02

Suitable for all kinds of hopper scales, platform scales, belt scales, batching scales, weighing feeder, coal feeder

Rated load: 30, 35, 40, 50, 60, 75, 100, 150, 200, 250, 300, 350kg, 500, 700kg;

The main technical parameters are as follows:

● excitation voltage: 10VDC±5%

● sensitivity output: 2 ~ 3mV/V

● nonlinearity: < 0.03% of rated output

● repeatability: < 0.03% of rated output

● creep: 0.02% of rated output

● adaptive temperature: -20℃ ~ 50℃

● overload capacity: 150% of sensor capacity

● temperature sensitivity: ±0.0003% at zero and ±0.0004% at full
