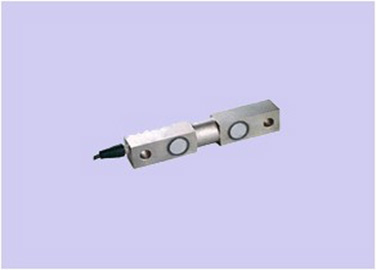

Product name: RAMSEY 9320 series weight sensor

Materials: alloy steel, stainless steel

Protection class: ip66/67

Accuracy: 0.03

Range: 4.5 ~ 34t

Application: hopper scale, liquid filling scale, steel coil scale, steel tank scale

The main technical parameters are as follows:

● excitation voltage: 10VDC±5%

● sensitivity output: 2 ~ 3mV/V

● nonlinearity: < 0.03% of rated output

● repeatability: < 0.03% of rated output

● creep: 0.02% of rated output

● adaptive temperature: -20℃ ~ 50℃

● overload capacity: 150% of sensor capacity

● temperature sensitivity: ±0.0003% at zero and ±0.0004% at full
