Product name: RAMSEY 93 series weight sensor

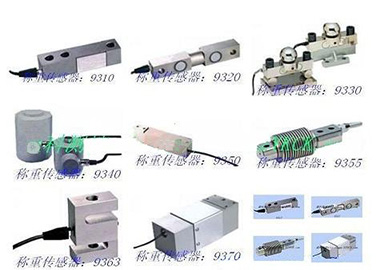

RAMSEY 9370, 9363, 9355K, 9340, 9330, 9320, 9310 series weight sensors

The 9310 series

Materials: alloy steel, stainless steel

Protection class: ip66/67

Accuracy: 0.03

Range: 250 ~ 20000kg

Application: hopper scale, platform scale, truck scale, steel coil scale, steel tank scale

The 9320 series

Materials: alloy steel, stainless steel

Protection class: ip66/67

Accuracy: 0.03

Range: 4.5 ~ 34t

Application: hopper scale, liquid filling scale, steel coil scale, steel tank scale

The 9330 series

Material: alloy steel

Protection level: IP65

Accuracy: 0.03

Range: 5 ~ 50 t

Application: hopper scale, liquid filling scale, truck scale, steel coil scale, steel tank scale, track scale

The 9340 series

Material: alloy steel

Protection class: IP67

Accuracy: 0.02

Range: 2-200 - t

Optional features: EEx ia IIC T4 - hazardous zone approval

Application: hopper scale, liquid filling scale, truck scale, steel coil scale, steel tank scale, track scale

The 9355k series

Performance characteristics:

Materials: aluminum alloy, stainless steel

Protection class: IP67

Accuracy: 0.02

Suitable for all kinds of hopper scales, platform scales, belt scales, batching scales, weighing feeder, coal feeder

Rated load: 30, 35, 40, 50, 60, 75, 100, 150, 200, 250, 300, 350kg, 500, 700kg;

The 9363 series

Performance characteristics:

Materials: aluminum alloy, stainless steel

Protection level: IP65

Accuracy: 0.03

Suitable for belt scale, hopper scale, hook scale, screw scale, electromechanical scale, weighing feeder, coal feeder

Rated load: 30, 35, 40, 50, 60, 75, 100, 150, 200, 250, 300, 350kg, 500, 1000kg;

The 9370 series

Performance characteristics:

Materials: aluminum alloy, stainless steel

Protection level: IP65

Accuracy: 0.02

Suitable for belt scale, platform scale, batching scale, weighing feeder, coal feeder

Rated load: 30, 35, 40, 50, 60, 75, 100, 150, 200, 250, 300, 350kg, 500, 1000kg;

The main technical parameters of the weighing sensor are as follows:

● excitation voltage: 10VDC±5%

● sensitivity output: 2 ~ 3mV/V

● nonlinearity: < 0.03% of rated output

● repeatability: < 0.03% of rated output

● creep: 0.02% of rated output

● adaptive temperature: -20℃ ~ 50℃

● overload capacity: 150% of sensor capacity

● temperature sensitivity: ±0.0003% at zero and ±0.0004% at full
