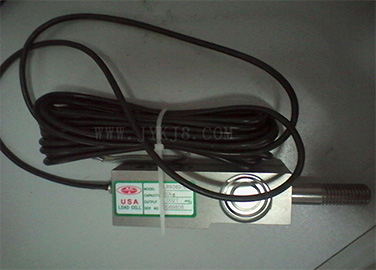

Product name: plr9363-ls weight sensor

USES and features

One end is fixed, the other end is loaded and sealed well;

Good automatic center adjustment after stress, simple installation, easy to use, good interchangeability;

It can be used to make all kinds of ultra-thin electronic truck scale, monorail crane scale, hopper scale and so on.

Range

50,100,200,300,500 kg; 1,2,3,5,10,15,20 t

Technical parameters of cantilever beam weighing sensor

Rated load: 0.05 ~ 20t

Integrated precision: 0.020.03 (linear + lag + repeatability)

Sensitivity: 2.0mV/V

Creep: ± 0.02% F·S/30min

Zero output: ± 1% F·S

Influence of zero point temperature: ± 0.02% F·S/10℃

Influence of output temperature: ± 0.02% F·S/10℃

Operating temperature: -20℃ ~ +65℃

Input impedance: 380 + 10 Ω

Output impedance: 350 + 3 Ω

Insulation resistance: > 5000 m Ω

Safety overload: 150% F·S

Bridge voltage: 10VDC is recommended

The material

Alloy steel or stainless steel

Connection mode

Input (+) : red input (-) : black

Output (+) : green output (-) : white

Signal amplifier connection

Power supply: red. Public end: green. Output: yellow.
