Product name: CXM box automatic chain code checking device

Summary:

CXM box body automatic chain code calibration device (storage box chain code) is applied to the electronic belt scale in the belt conveyor cycle operation, to achieve the automatic calibration of the electronic belt scale accuracy, usually applicable to the calibration accuracy of various belt scales between (0.5) and (2.0).

Working principle:

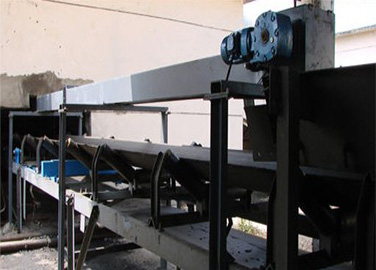

CXM box chain code automatic calibration device is installed on the upper part of the conveyor at the electronic belt scale body, which can automatically and stably place the chain code on the belt scale body to complete the accuracy verification of the electronic belt scale.

The chain code is normally stored in the cabinet when not in use. It is operated by the electronic control device when in use. The chain code is automatically placed on the belt above the scale body.

Main features of the system:

◆ box chain code device is installed above the belt, the calibration process is convenient and quick, high degree of automation, saving time and labor, accurate and reliable;

◆ chain code are automatically operated by the electronic control system, and equipped with remote output contacts for remote control by the program control room;

Main technical parameters:

Working environment requirements:

◆ ambient temperature: -35℃ - -65℃;

◆ power supply:

220VAC (+10%/-15%), 50HZ (±2%) control loop

380VAC (+10%/-15%), 50HZ (±2%) retraction drive
