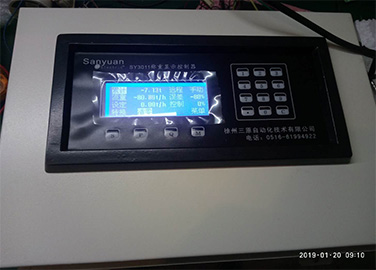

Xuzhou sanyuan automatic weighing controller (SY3011B/D/E/TTL)

Weighing display controller (sy3011)

• all Chinese menu display, easy and flexible operation;

• four rows of large LCD display data, flow, speed, cumulative volume, load and time can be set as the same screen display;

• 50 times of sigma -△a/d conversion per second, the overall accuracy of the machine is better than 0.01%;

• there is a software pid adjustment function, which can directly control the operation of the feeding equipment and carry out the batching, saving the special equipment of the pid regulator;

• guided menu operation, the instrument is equipped with self-diagnosis, alarm prompt, pulse output and manual/automatic air balance zero adjustment and zero point automatic tracking functions, and can realize automatic correction of simulation or physical inspection errors;

• the unique self-learning function enables the device to run rapidly at the set flow rate after starting up, with basically no oscillations, and solves the phenomenon of repeated and substantial adjustments of the same industry's superior feeder equipment;

• data storage, Dallas keeps data for 10 years;

• the system has the function of cumulative pulse output;

• highly reliable power loss protection for internal data;

• dual-channel programmable 4-20ma analog current output port (with 12-bit d/a converter) for batching control and remote transmission;

• programmable 4-20ma analog current input port, which can be used for remote setting or receiving signals from other devices;

• four-channel programmable digital signal output port (the fourth channel port is the output of the solid-state relay, which is used for the output of remote relay and heavy pulse), other ports can be used for alarm and control;

• three-way programmable digital input, which can be used for on-site status detection, etc.;

• with rs232/rs485 serial communication port for remote communication and control;

• with printout function.

Spot supply, can not provide detailed models can be recommended according to the site model, for the site can not be replaced customers can provide free technical support or on-site technical services.
