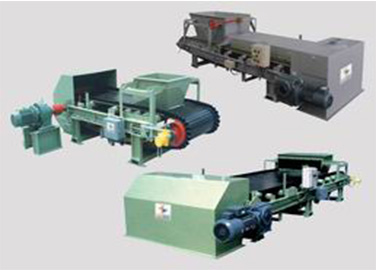

Product name: small flow quantitative feeder

On the basis of digesting and absorbing the technology of Germany shenke company, combined with our rich experience in the design, manufacture and application of quantitative feeder, in order to meet the requirements of small flow feeder. Launch small dynamic measuring equipment, it kept constant feeder stable performance characteristics of solid structure, beautiful shape, but small, PVC conveyor belt with double sensor structure, overall galvanizing technology such as a number of advanced technology, products with high measuring accuracy, good control effect and strong adaptability, can be widely used in building material, metallurgy, steel, chemical industry, coal, ceramics, etc for quantitative conveying powdery and granular materials of small flow.

Low flow quantitative feeder product features:

1. Dual sensor direct weighing device can effectively eliminate the influence of material deviation and cross reed on measurement accuracy

2. using PVC belt, uniform thickness, tare weight stability, effectively improve the measurement accuracy

3. the overall galvanized process, product anti-corrosion ability

4. Gravity automatic tensioning device ensures the belt tension is constant and the measurement accuracy is less affected by the belt

5. Anti-deviation rectifying device can avoid belt deviation and affect measurement accuracy and normal production

6. Efficient speed sensor is adopted to ensure accurate speed measurement

7. The belt drum is used to drive the drum, with large friction resistance and non-slip belt, which can adjust the deviation and stabilize the belt

8. It adopts shaft-mounted direct reduction motor and variable frequency speed control to drive, which ensures smooth operation and long service life

9. easy to replace the belt, as long as the removal of the scale body support, can be easily replaced in the suspension state ring belt

10. Supporting LT0916 weighing control instrument has a variety of signal output, which can be connected with DCS to realize intelligent centralized control

Small flow quantitative feeder technical parameters

1. Measurement accuracy: ≤±0.5%

2. Control accuracy: ≤±0.5%

3. Feeding capacity: 50 ~ 1000kg/h

4. Material particle size: ≤10mm

5. Belt width: 300mm ~ 500mm

6. Overall size: 1000cm(length)×40cm ()

7. Temperature: instrument -10℃ ~ 50℃; Scale body -30℃ ~ 60℃

8. Relative humidity: ≤90%

9. Adjustment range: 50Hz ~ 60Hz

10. power

Instrument table: 220VAC(-15%/+10%), 50Hz(±2%)

Feeder: 380VAC(-15%/+10%), 50Hz(±2%)
