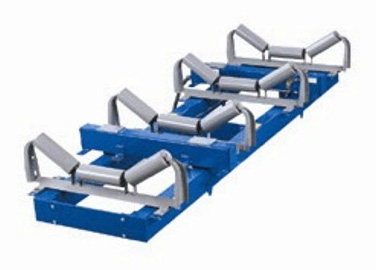

Product name: ics-14 high-precision electronic belt scale

Summary:

Ics-14 high-precision electronic belt scale is the ideal equipment for continuous measurement of bulk materials in belt conveying system, its main characteristics are long-term stability and weighing accuracy, the scale is mainly used in the field of high technology requirements or enterprises need to carry out trade settlement.

System composition:

ICS-14 high-precision electronic belt scale consists of four parts:

1. Weighing bridge 1 set

2. One tri-original weighing controller (instrument) (with 4-20ma output)

3. 4 weighing sensors (famous professional manufacturer)

4. One speed sensor and one speed measuring roller (type 60-12c)

Structural features:

◆ full suspension structure, no trunnion fulcrum and movable parts, small maintenance;

◆ unit component structure, less transmission links, simple and convenient installation;

◆ unique rectangular scale, good rigidity, light load, good zero point stability;

◆ resistance to lateral force, resistance to horizontal separation, effectively reduce the impact of belt off-tracking and off-loading on the system precision;

◆ four weighing sensors, less affected by off-load, stable, high measurement accuracy;

◆ the weighing area is wide and the four sets of idlers have the least influence on the weighing accuracy.

Main technical parameters:

◆ measurement accuracy: ±0.125%

◆ weighing range: 0 ~ 6000t/h

◆ belt width: 500 ~ 2400mm

◆ belt speed: 0.01 ~ 4.0m/s

◆ belt conveyor inclination: 0° ~ 6°

Working and installation environment:

◆ ambient temperature:

Machinery: - 20 ° C / + 50 ° C

Appearance: - 10 ° C / + 40 ° C

◆ power supply voltage: 220VAC (+10%, -15%) 50HZ±2%

Appearance size:

Note: the size of the unlisted bandwidth in the table is determined according to the actual frame

Installation diagram:
